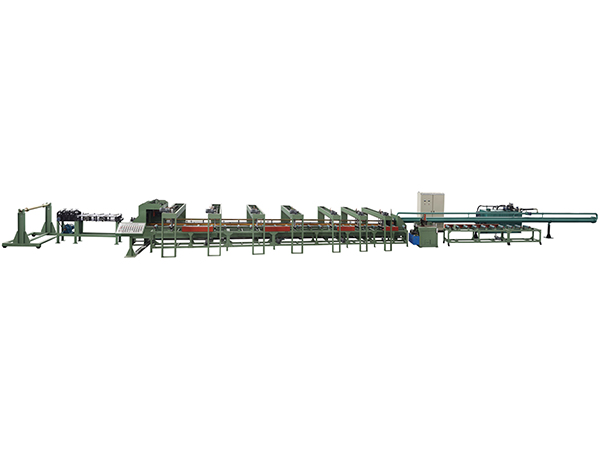

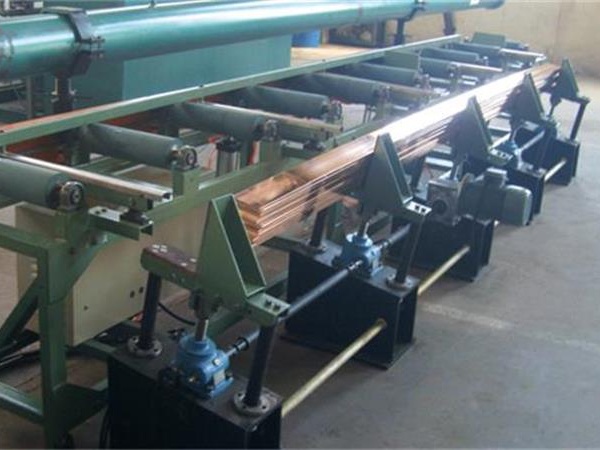

Copper Bar Hydraulic Automatic Drawing Machine is applicable to the drawing of copper bars, copper rod, and other materials via the mold. The well-drawn finished products can achieve the goals of higher accuracy, brighter surface, greater hardness and elasticity, and difficult deformation. Such a hydraulic drawing machine is presently the substitute of chain drawing machines because it can substantially reduce operating employees, ease labor intensity, and improve the operators' safety while having the best performance and high automatic. The length of the machined products can set out of the total length range as required.
| 12M | 10M | 8M | 6M | ||
| Nominal drawing force(t) | 50 | ||||
| Effective drawing length (m) | 12 | 10 | 8 | 6 | |
| Material (mm) | Width | ＜170 | |||
| Thickness | 3～30 | ||||
| Drawing speed (m/min) | 1～10 | ||||
| Return speed (m/min) | 10～48 | ||||
| ID of the cylinder (min) | 220 | ||||
| Diameter of the piston rod (min) | 125 | ||||
| Stoke of the main oil cylinder (m) | 12.5 | 10.5 | 8.5 | 6.5 | |
| Oil pressure from the hydraulic station (MPa) | 21 | ||||
| Power supply | Three phases four lines 380V/50Hz | ||||
| Capacity (kW) | 90 | 88 | 75 | 75 | |
| Cooling water（m3/h） | 10～30 | ||||
| Compressed air（m3/h） | 1 | ||||
| Equipment Size(m) | Length | 35 | 32 | 30 | 28 |
| Width | 4.5 | ||||
| Height | 2.2 | ||||
| Weight of the equipment(t) | 30 | 29 | 25 | 23 | |
| Space needed（m） | 40 | 36 | 29 | 23 | |
| 12M | 10M | 8M | 6M | ||
| Nominal drawing force(t) | 80 | ||||
| Effective drawing length (m) | 12 | 10 | 8 | 6 | |
| Material (mm) | Width | ＜280 | |||
| Thickness | 3～30 | ||||
| Drawing speed (m/min) | 1～10 | ||||
| Return speed (m/min) | 10～48 | ||||
| ID of the cylinder (min) | 250 | ||||
| Diameter of the piston rod (min) | 125 | ||||
| Stoke of the main oil cylinder (m) | 12.5 | 10.5 | 8.5 | 6.5 | |
| Oil pressure from the hydraulic station (MPa) | 21 | ||||
| Power supply | Three phases four lines 380V/50Hz | ||||
| Capacity (kW) | 110 | 95 | 88 | 88 | |
| Cooling water（m3/h） | 10～30 | ||||
| Compressed air（m3/h） | 1 | ||||
| Equipment Size(m) | Length | 35 | 32 | 30 | 28 |
| Width | 4.5 | ||||
| Height | 2.2 | ||||
| Weight of the equipment(t) | 30 | 29 | 25 | 23 | |
| Space needed（m） | 40 | 36 | 29 | 23 | |
| 12M | 10M | 8M | 6M | ||
| Nominal drawing force(t) | 100 | ||||
| Effective drawing length (m) | 12 | 10 | 8 | 6 | |
| Material (mm) | Width | ＜350 | |||
| Thickness | 3～30 | ||||
| Drawing speed (m/min) | 1～10 | ||||
| Return speed (m/min) | 10～48 | ||||
| ID of the cylinder (min) | 300 | ||||
| Diameter of the piston rod (min) | 125 | ||||
| Stoke of the main oil cylinder (m) | 12.5 | 10.5 | 8.5 | 6.5 | |
| Oil pressure from the hydraulic station (MPa) | 21 | ||||
| Power supply | Three phases four lines 380V/50Hz | ||||
| Capacity (kW) | 132 | 110 | 95 | 95 | |
| Cooling water（m3/h） | 10～30 | ||||
| Compressed air（m3/h） | 1 | ||||
| Equipment Size(m) | Length | 35 | 32 | 30 | 28 |
| Width | 4.5 | ||||
| Height | 2.2 | ||||
| Weight of the equipment(t) | 38 | 34 | 30 | 26 | |
| Space needed（m） | 40 | 36 | 29 | 23 | |
Finished products by Hydraulic Draw Bench Machine can be:

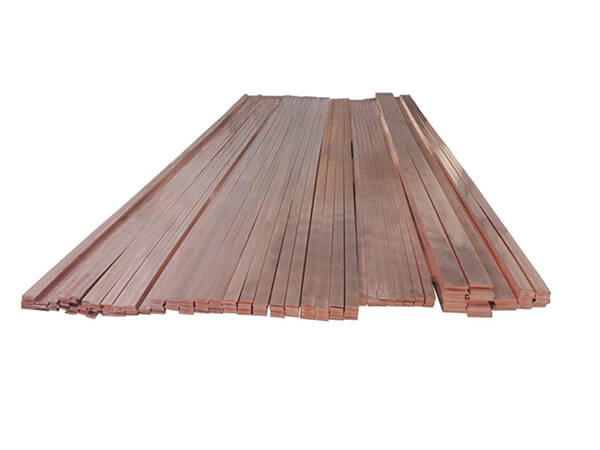

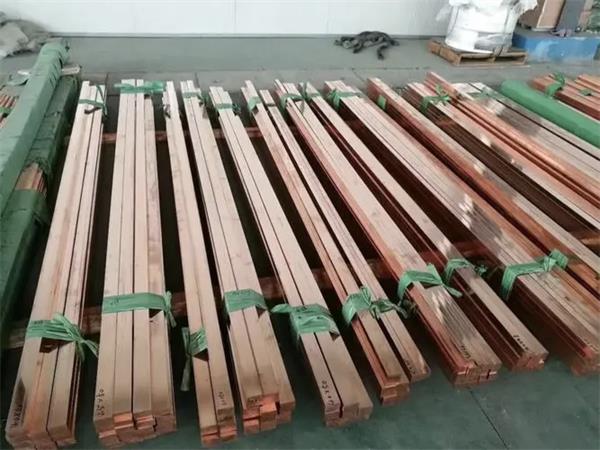

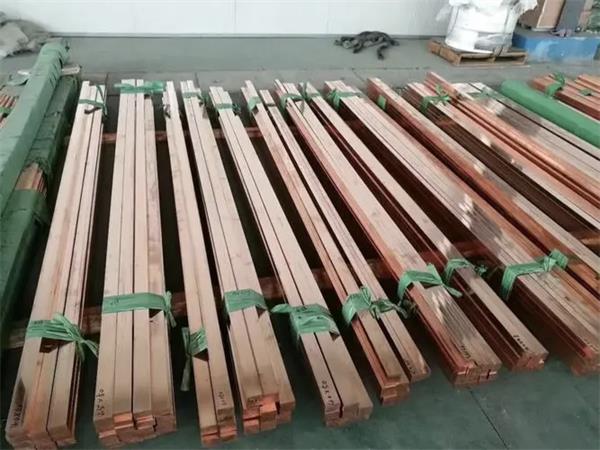

Copper rod / Copper strip / Copper tube
