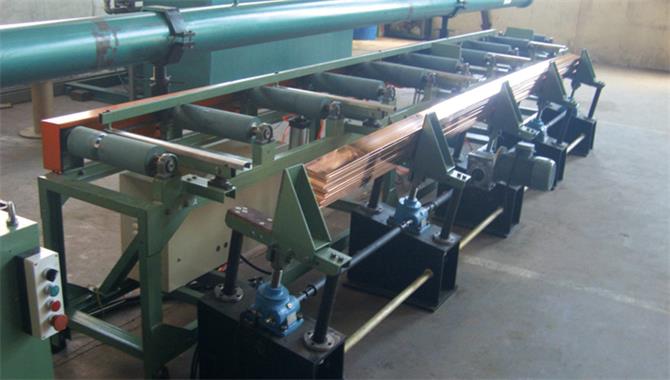

Hydraulic Draw Bench Machine

Product Description

Technical Parameter

MYLB-50T

		12M	10M	8M	6M
Nominal drawing force(t)		50
Effective drawing length (m)		12	10	8	6
Material (mm)	Width	＜170
	Thickness	3～30
Drawing speed (m/min)		1～10
Return speed (m/min)		10～48
ID of the cylinder (min)		220
Diameter of the piston rod (min)		125
Stoke of the main oil cylinder (m)		12.5	10.5	8.5	6.5
Oil pressure from the hydraulic station (MPa)		21
Power supply		Three phases four lines 380V/50Hz
Capacity (kW)		90	88	75	75
Cooling water（m3/h）		10～30
Compressed air（m3/h）		1
Equipment Size(m)	Length	35	32	30	28
	Width	4.5
	Height	2.2
Weight of the equipment(t)		30	29	25	23
Space needed（m）		40	36	29	23

MYLB-80T

		12M	10M	8M	6M
Nominal drawing force(t)		80
Effective drawing length (m)		12	10	8	6
Material (mm)	Width	＜280
	Thickness	3～30
Drawing speed (m/min)		1～10
Return speed (m/min)		10～48
ID of the cylinder (min)		250
Diameter of the piston rod (min)		125
Stoke of the main oil cylinder (m)		12.5	10.5	8.5	6.5
Oil pressure from the hydraulic station (MPa)		21
Power supply		Three phases four lines 380V/50Hz
Capacity (kW)		110	95	88	88
Cooling water（m3/h）		10～30
Compressed air（m3/h）		1
Equipment Size(m)	Length	35	32	30	28
	Width	4.5
	Height	2.2
Weight of the equipment(t)		30	29	25	23
Space needed（m）		40	36	29	23

MYLB-100T

		12M	10M	8M	6M
Nominal drawing force(t)		100
Effective drawing length (m)		12	10	8	6
Material (mm)	Width	＜350
	Thickness	3～30
Drawing speed (m/min)		1～10
Return speed (m/min)		10～48
ID of the cylinder (min)		300
Diameter of the piston rod (min)		125
Stoke of the main oil cylinder (m)		12.5	10.5	8.5	6.5
Oil pressure from the hydraulic station (MPa)		21
Power supply		Three phases four lines 380V/50Hz
Capacity (kW)		132	110	95	95
Cooling water（m3/h）		10～30
Compressed air（m3/h）		1
Equipment Size(m)	Length	35	32	30	28
	Width	4.5
	Height	2.2
Weight of the equipment(t)		38	34	30	26
Space needed（m）		40	36	29	23

Finished Products

Finished products by Hydraulic Draw Bench Machine can be:

Advantages

1. The hydraulic automatic draw bench applies to draw forming and length cut of copper bar after extruding.
2. The drawn copper bar has stable cross-sectional size, good dimensional accuracy, improved hardness, elastic limit and the conductivity. improved hardness, elastic limit and the conductivity.
3. The machine increases the material utilization and greatly improves the surface quality of copper bar.
