Copper Flat Wire Extrusion Machine

Machine Features

·used to produce copper flat wire,copper busbar, commutator,contact wires for electrical motive and other solid copper material

· used for the production of transformer, big and middle sized motor,high low voltage switch electric appliance, DC electric commutator and so on.



Inquire Now

    Product Description

    Copper flat wire extrusion machine can be used to produce copper flat wire,copper busbar, commutator,contact wires for electrical motive and other solid copper material. The products are extensively used for the production of transformer, big and middle sized motor,high low voltage switch electric appliance, DC electric commutator and so on.

    Technical Parameter

    ModelExtrusion Wheel Diarneter(mm)Main Motor Power(kw)Rod Diameter(mm)Maximum Width of ProductProduct Rod Diarneter(mm)Product Cross-Sectional Area(mm2)Output(kg/h)
    MTLJ3003009012.5402.65-200480
    MTLJ300H30011012.5302.65-150800

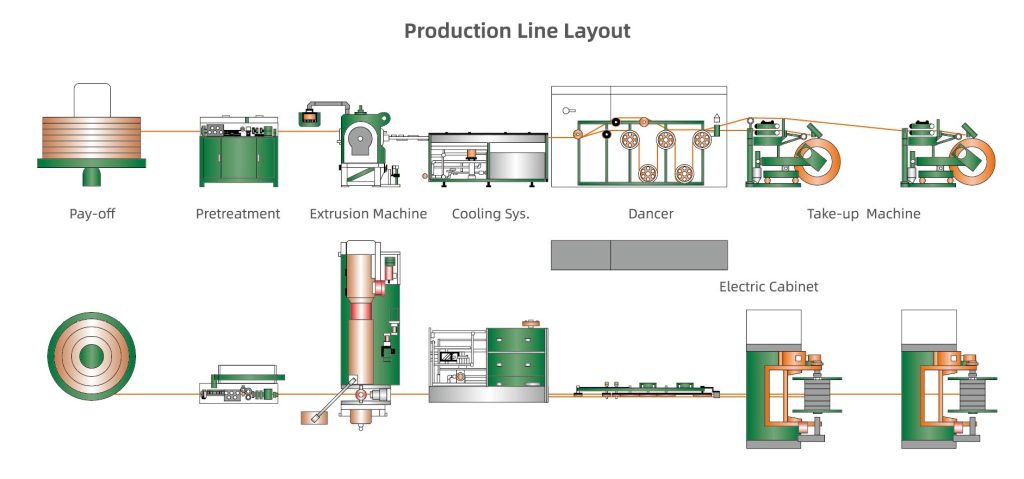

    Layout

    Finished Products

    Finished products by upcasting machine can be:

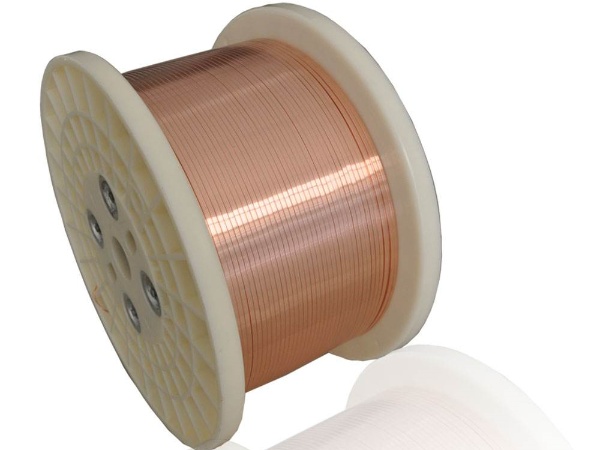

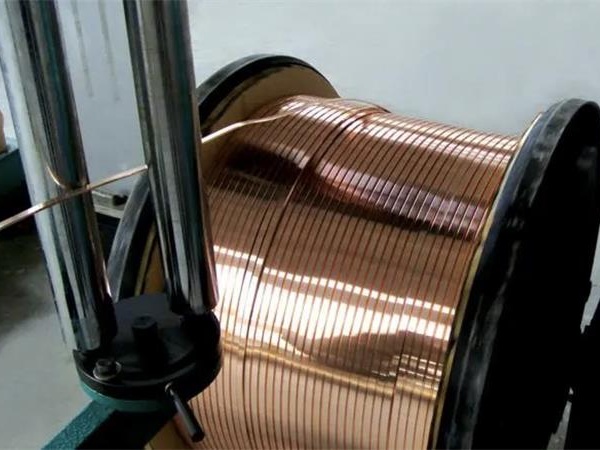

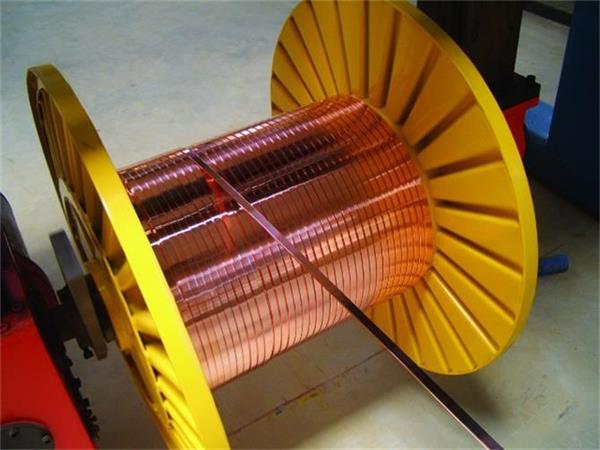

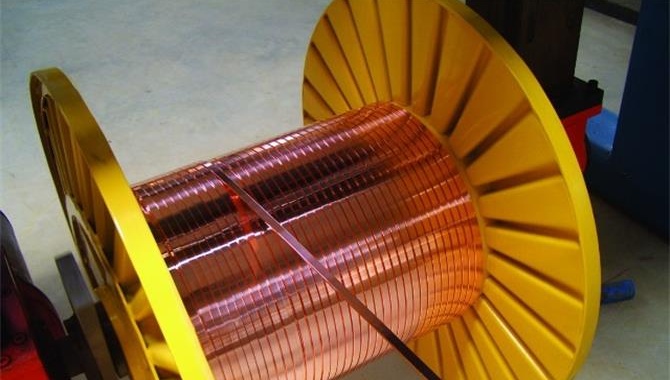

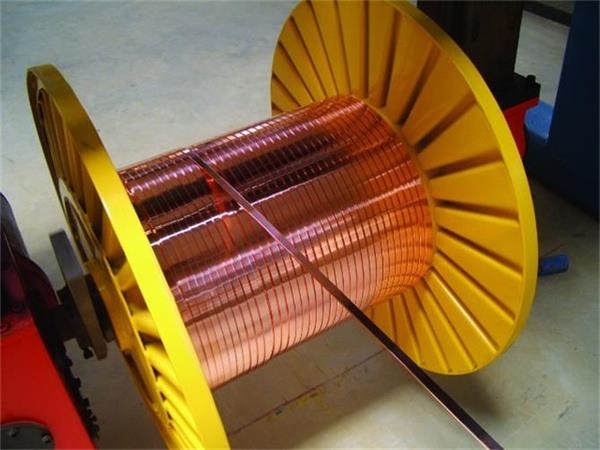

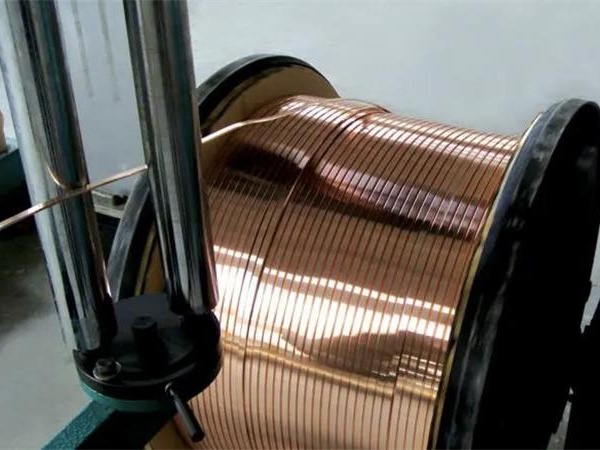

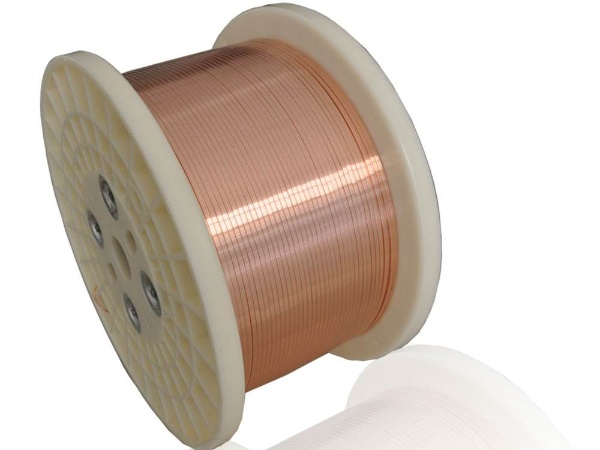

    Flat Wire
    Flat Wire
    Flat Wire

    Advantages

    1. The continuous extrusion equipment is to extrude the copper rod to generate high pressure and high temperature. Through mold extrusion forming, it can adapt to small-batch production of various kinds, and can also adapt to large-batch production.
    2. Through the high-pressure and high-temperature treatment, the influence of defects (cracks, burr and so on) existing in the raw material on the finished products can be eliminated.
    3. To increase the density. The finished products are extruded at high temperature and high pressure, so that the surface is bright and clean, and the dimensional precision is high.
    4. The product does not require annealing, and the hardness shall be uniform. The extrusion process can thoroughly eliminate the problem of raw material joint, and the length of the required product is not subject to the restriction of the length of the raw material.
    5. The floor area of the extrusion equipment is small, the installation and construction are simple, the energy consumption is low, and the labor intensity is low. The safety during the production process is high, and the production environment is clean, which completely meets the environmental protection requirements.
