The cold welder is a tool to joint nonferrous wires with the method of cold butt weld,There is no need to use electricity,heat,flux and electrode,thus saving such troublesome preteating works of metal wire as cutting and cleaning the wire.

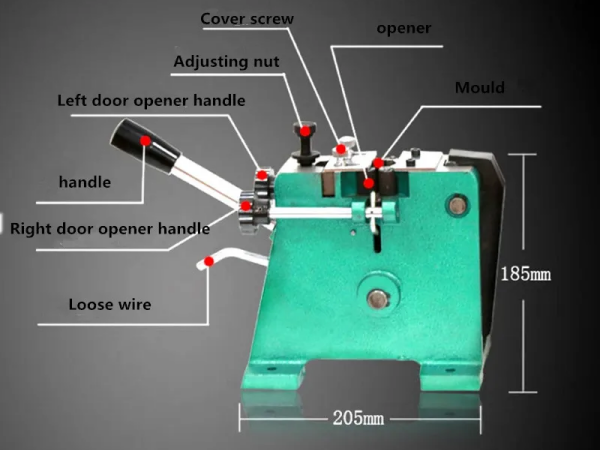

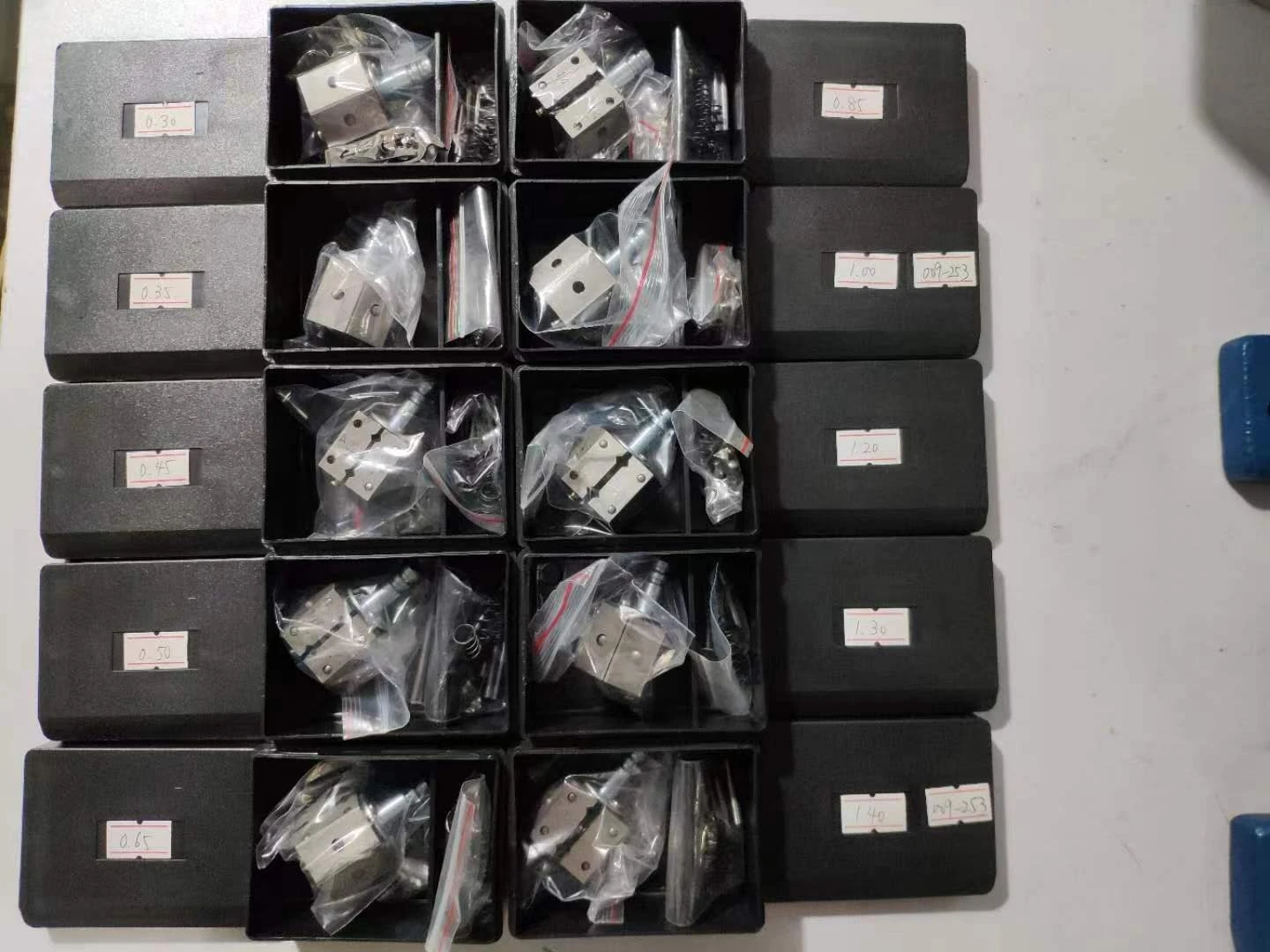

It only needs to thread two wire ends into a welding die,to match a suitable die depending upon the size of the wire,and then to press a handle of the welding machine several times,and the two wire ends get jointed.The result of such a welding is the same as the wire before welding,its tensile strength at the joint of the welded wire is good(equal to or even bigger than other wire)and is not broken at th joint.lts resistivity is not bigger than that of original wire ,therefore such welding is not to be compared with other welding method.
The merit of cold welding means simplicity in operation,with no need of extraordinary skill.With the method it is possible to ensure the reliability of welding,it is the most reliable and the most economic method to joint nonferrous wires and their allbys.
Copper rod / Copper strip / Copper tube
from 3.5 mm copper wire to 0.4mm
Input wire : 0.5-1.38 mm Output wire: 0.10-0.32 mm Production speed: max 2500 m/min
