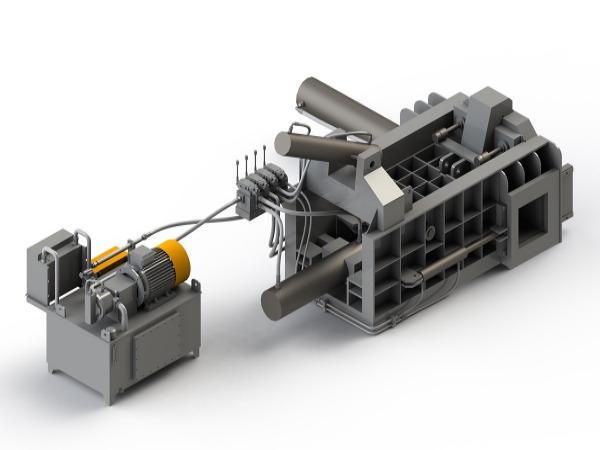

Hydraulic Pressing Machine are used for packing and compressing various metal leftovers into blocks, which can not only reduce the transportation and smelting costs, but also improve the output. Press the "start" button on the control box to start the motor, and press the "open cover" button to open the cover plate; Feed material into the compression chamber.
When the material fills the compression chamber, press the "press" button, and the cover plate cylinder controls the cover plate to compress downward, and after compression in place; The side cylinder controls the compression of the side plate. After the compression is in place, the master cylinder begins to compress. When the set pressure value is reached, the gate is opened.After the master cylinder pushes out the package, it will return automatically. The gate is closed, the side cylinder returns, the cover plate is opened, and the feeding continues.
| Model | HNCM125 | HNCM160 | HNCM200 | HNCM250 |
| Power | 15 KW | 22 KW | 22 KW | 30 KW |
| Pressure | 1250 KN | 1600 KN | 2000 KN | 2500 KN |
| Feeder Size | 1200*700*600 mm | 1600*1200*800 mm | 1600*1000*800 mm | 2500*2000*1000 mm |
| Output Press Size | 300*300 mm | 400*400 mm | 350*400 mm | 500*500 mm |

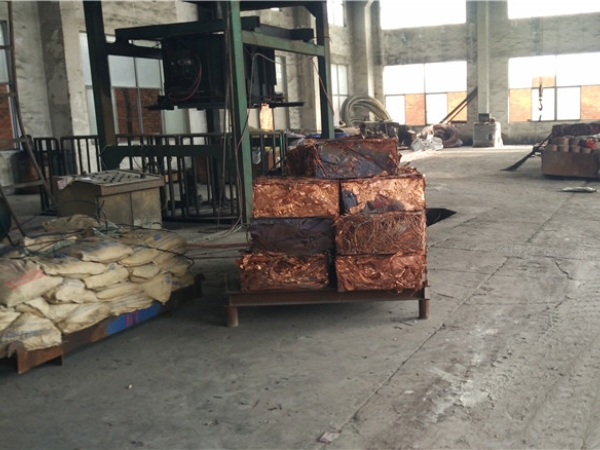

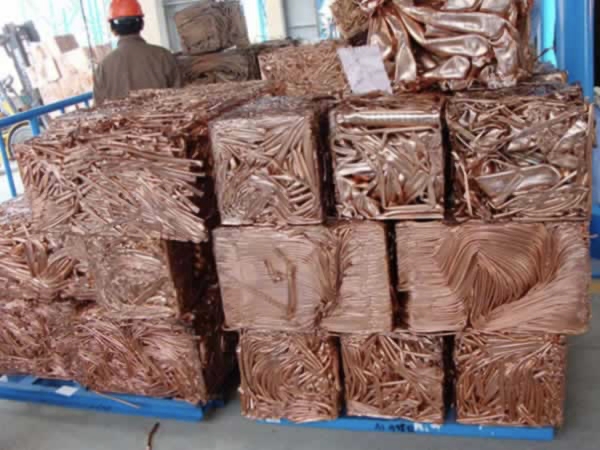

Finished products by Hydraulic Pressing Machine can be:
Copper rod / Copper strip / Copper tube
Copper rod / Copper strip / Copper tube
