Introduction

We meeted many clients, some new client want just one type machine to drawing big size range wire,

but it is very difficult for one machine to do all the job.And it's not useful and economic.

1. If need 80% of total production capacity is 1.2~1.5 mm, for small size range,no big capacity for wire 1.5-3.0 mm.Then choose Rod Breakdown Machine is not good for electrical waste and low efficiency.We suggest to produce 1.2-1.5 mm in intermediate wire drawing machine with 3 mm-3.5 mm inlet wire.

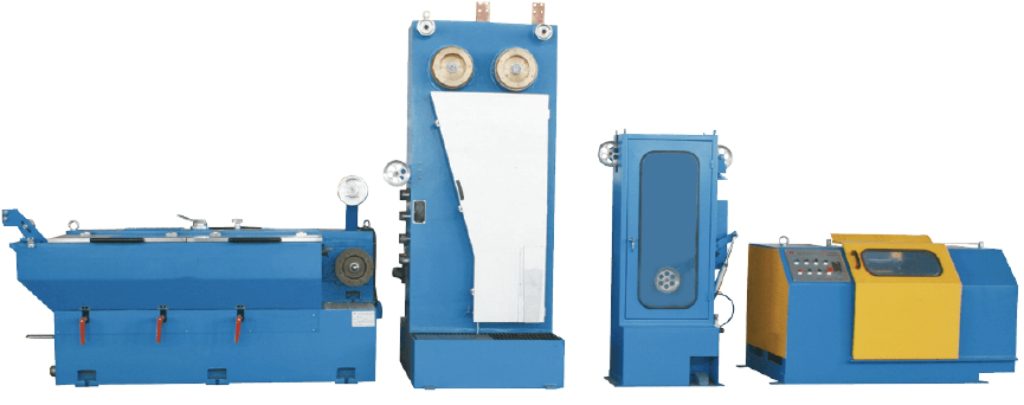

Intermediate Wire Drawing Machine

2. If need 80% of total production capacity is 2.6~3.0 mm,then choose Rod Breakdown Machine is better.

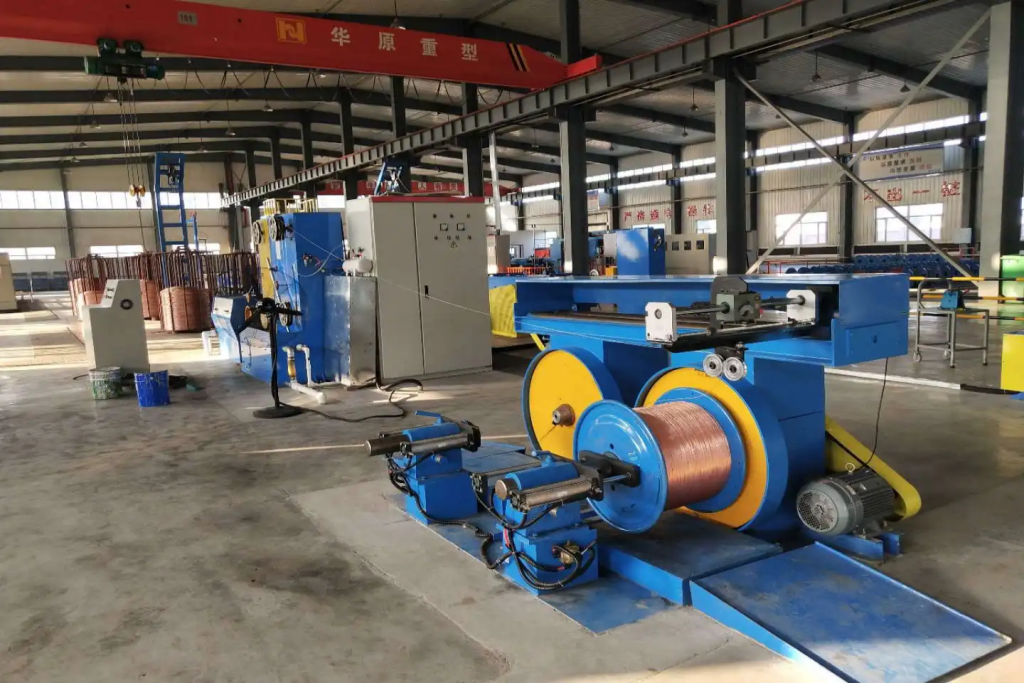

Copper Rod Breakdown Machine

Copper Rod Breakdown Machine with annealer is used to draw copper rod from Ø 8 mm to Ø 1.2~4.0 mm(drawing aluminium wire from 9.5mm to 1.7~4.8mm), which can be continuous annealed before the outlet wire wound by the dual takeup device or coiler.

Components:Pay-off stand, main drawing machine, continuous annealer(for copper wire only) , tension box, automatic dual take-up device(or coiler according to customer), wire pointer and stripper, electrical control system, etc.
